22.0 kW
Peak power
5 m
Total length
5.5 kg
Lightweight and portable
Chat With Us

Powerful & Fast Charging

Delivers up to 22kW output, three times faster than standard chargers. Compatible with both single-phase and three-phase supply

Replaceable Input Cable Design

Innovative interchangeable input interface supports multiple plug types (industrial, household, CEE, etc.).

Discharging Function (V2L)

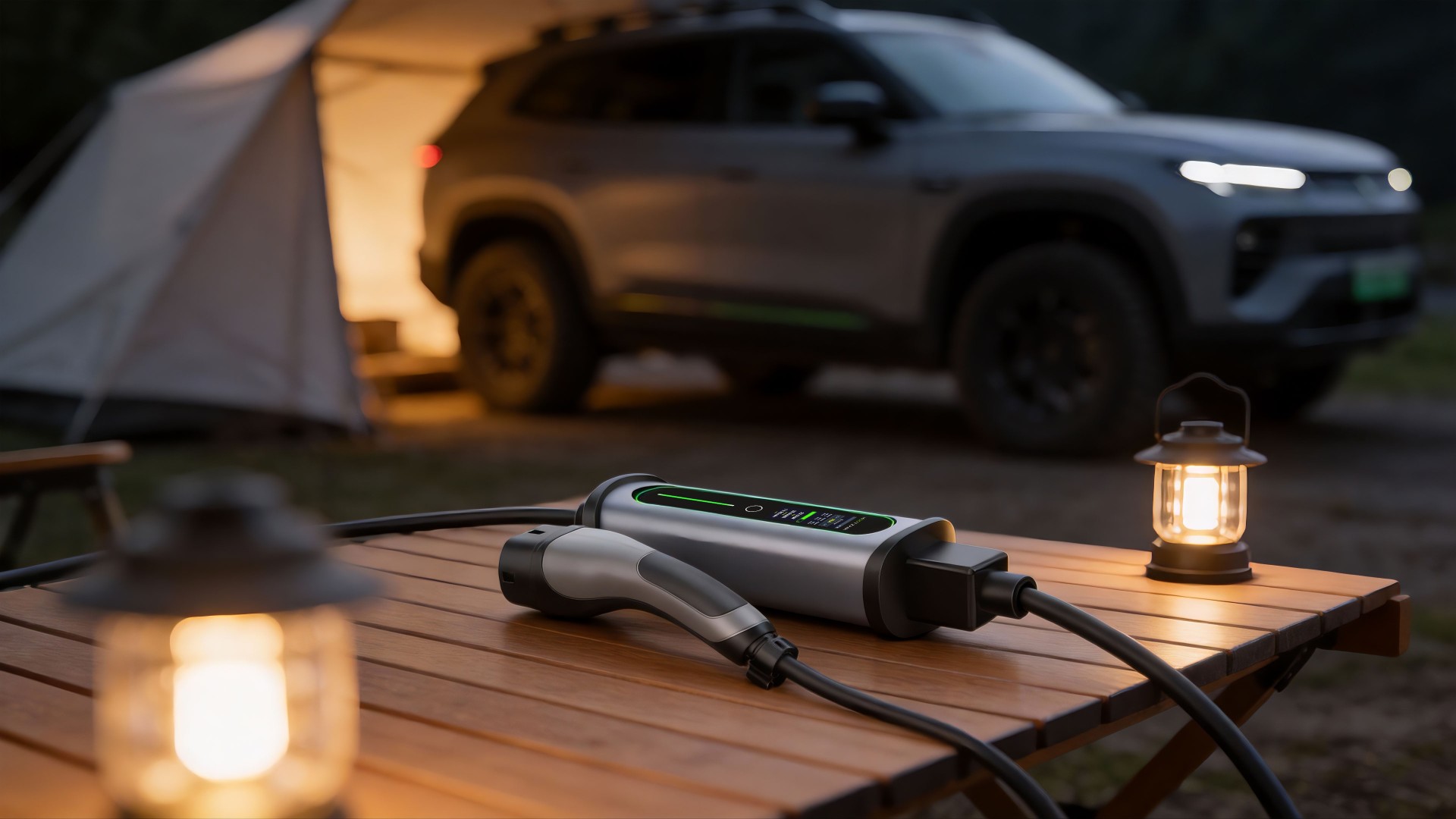

Supports vehicle-to-load power output, turning your EV into a portable energy source for camping or emergency use.

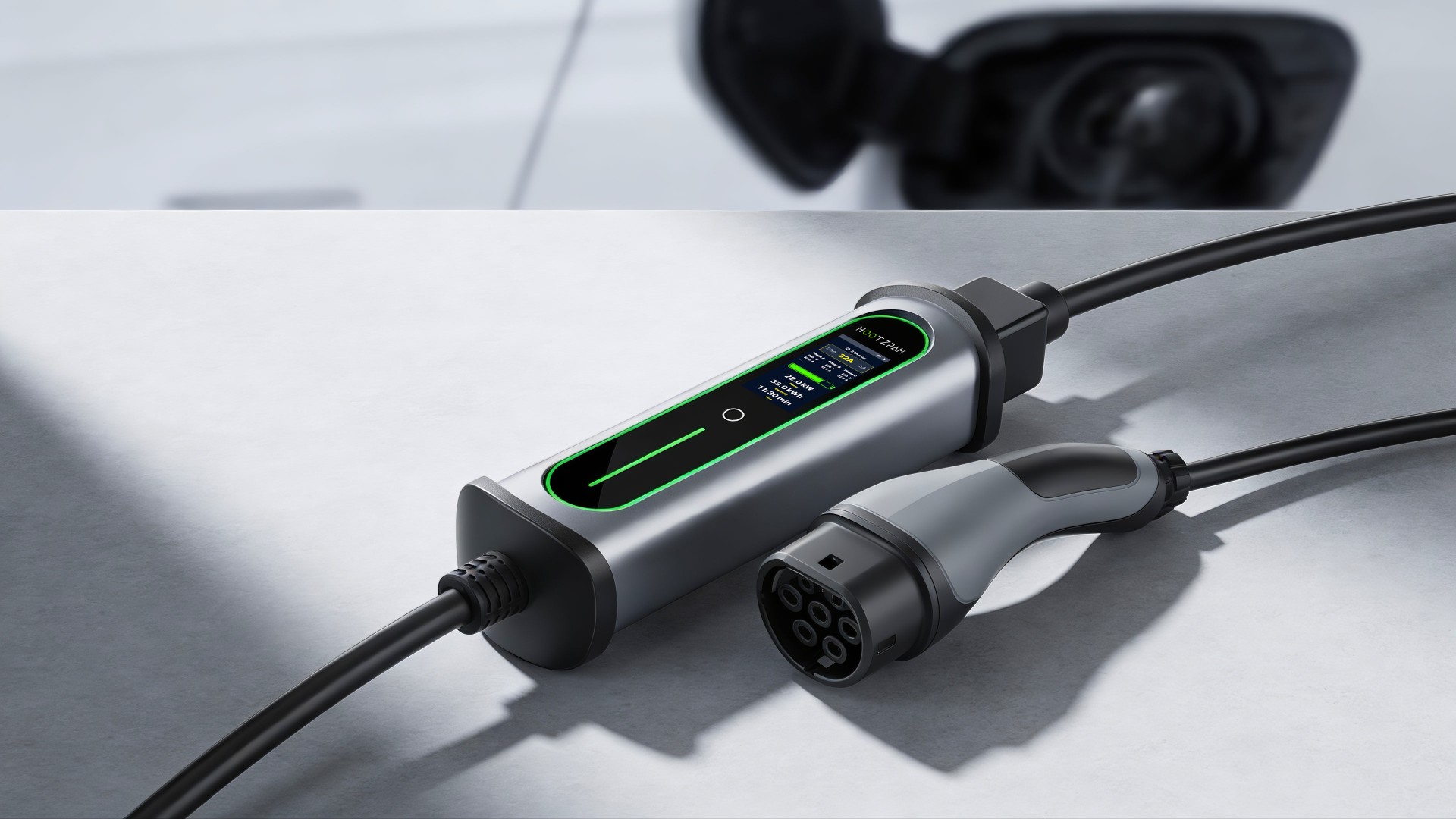

Control Handle – One-Touch Operation

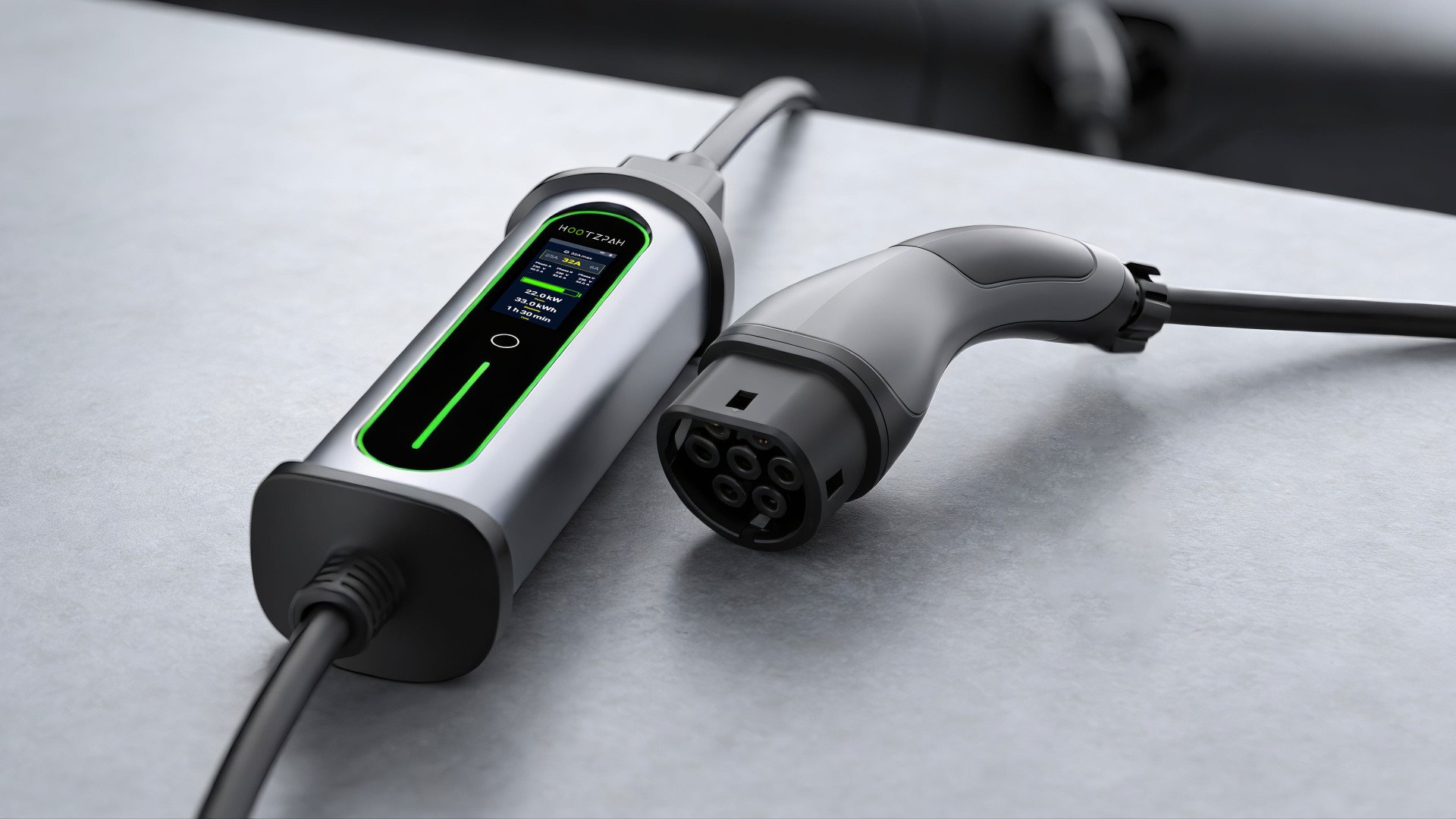

Type 2 connector equipped with a start/stop control touch button, allowing convenient charging management without unplugging.

Full Safety Protection

Waterproof, dustproof, lightning-proof, overheat, short-circuit, and overload protection. Auto power-off once charging is complete.

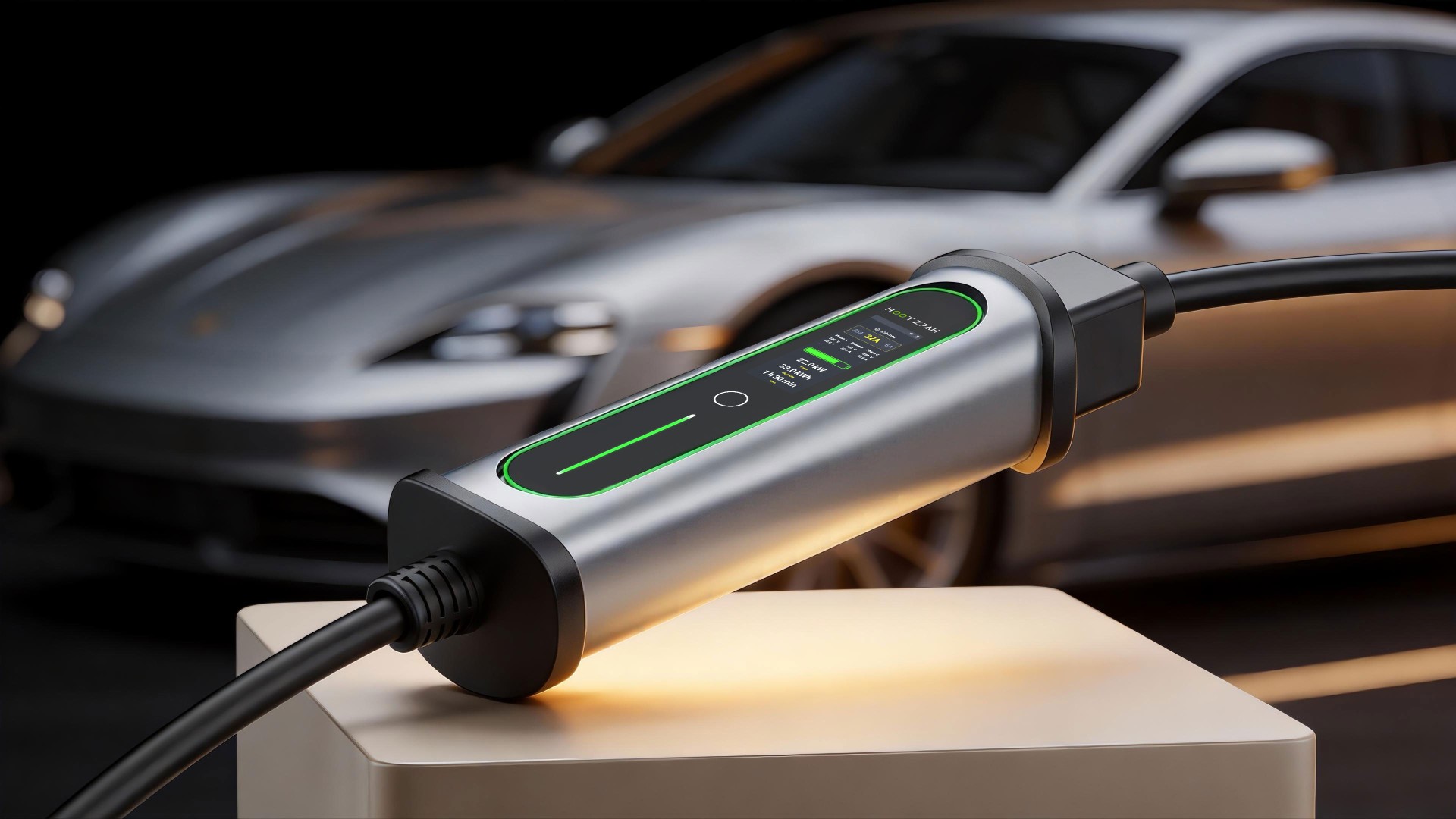

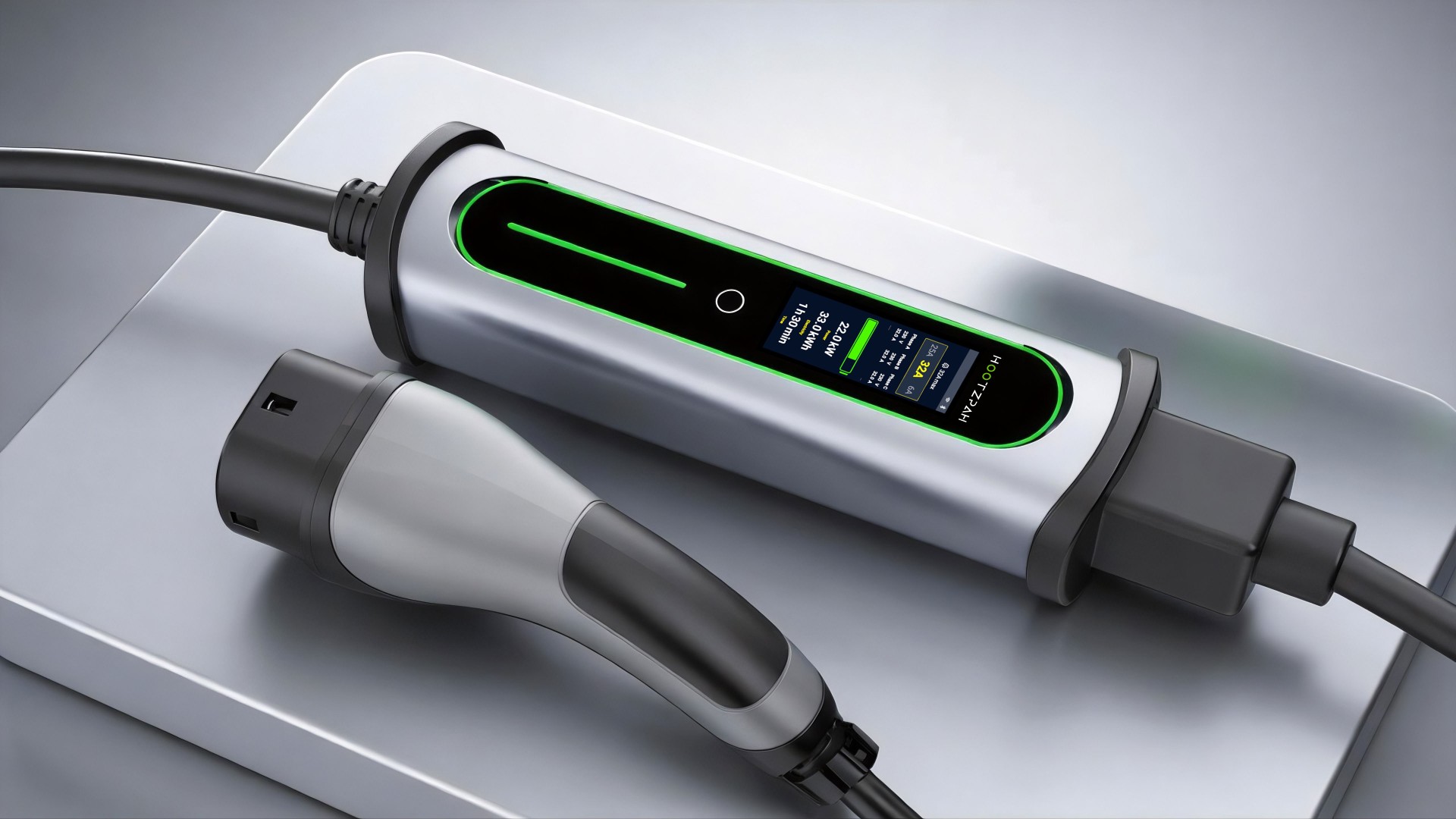

Premium Aluminum Alloy Housing – Strength Meets Style

Made with aerospace-grade aluminum, offering superior strength and durability. Anodized surface finish for corrosion resistance and a sleek appearance. Excellent heat dissipation for stable long-term operation.

Smart Temperature Control – Precision in Every Charge

The charger is equipped with an intelligent temperature control system that continuously monitors internal temperature and automatically adjusts power output based on real-time load. This ensures safe, stable, and efficient performance throughout every charging session.

High-Precision Current Control – Efficiency Meets Longevity

With advanced current control technology, the charger dynamically regulates output using intelligent algorithms, improves charging efficiency but also reduces battery heat, extending battery life and maintaining optimal performance over time.

Strong Compatibility

Provide with GB, EU, and US standards — fits most EVs on the market. Auto-recognition of charging parameters for different vehicles.

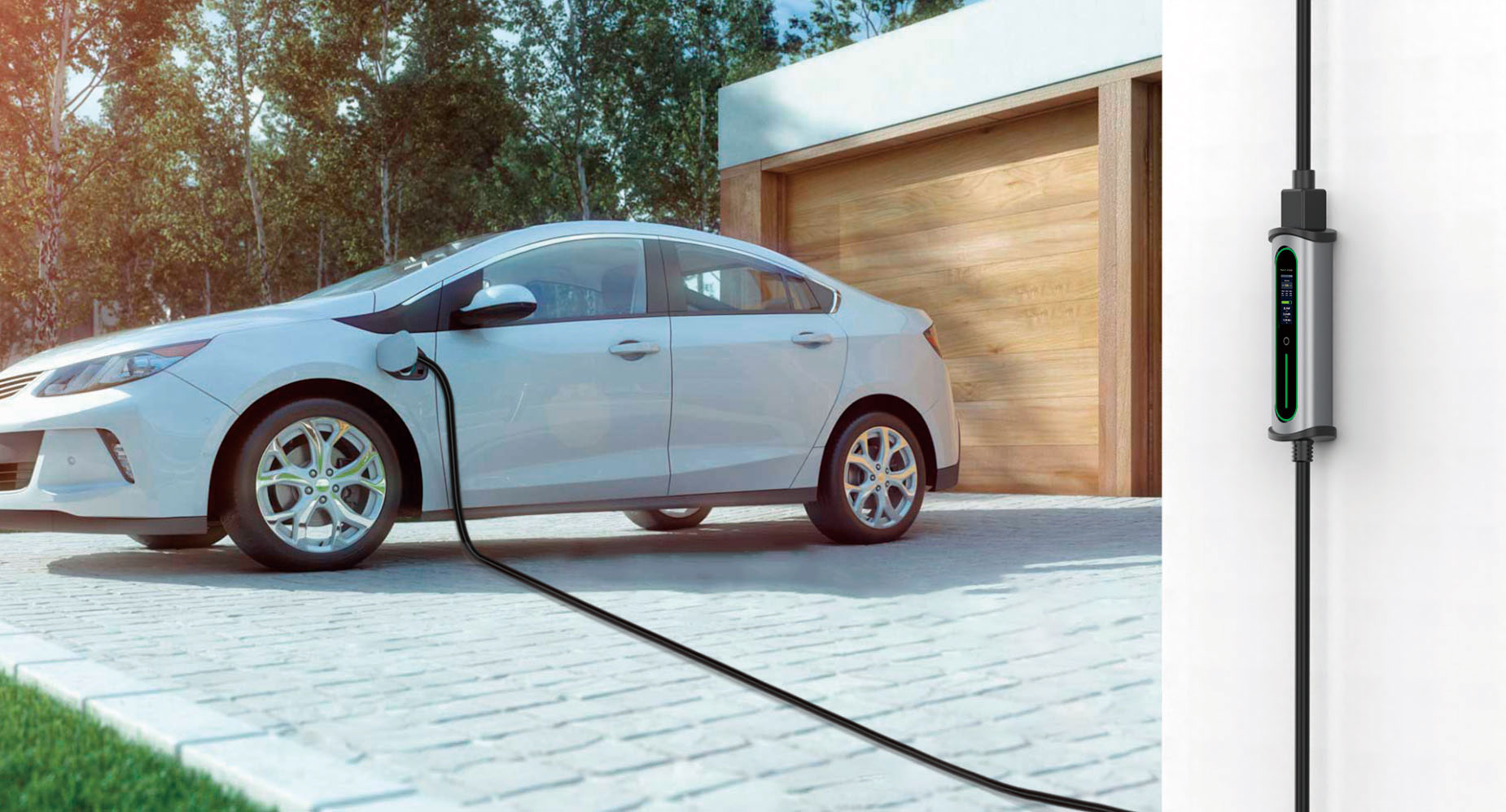

Versatile Applications

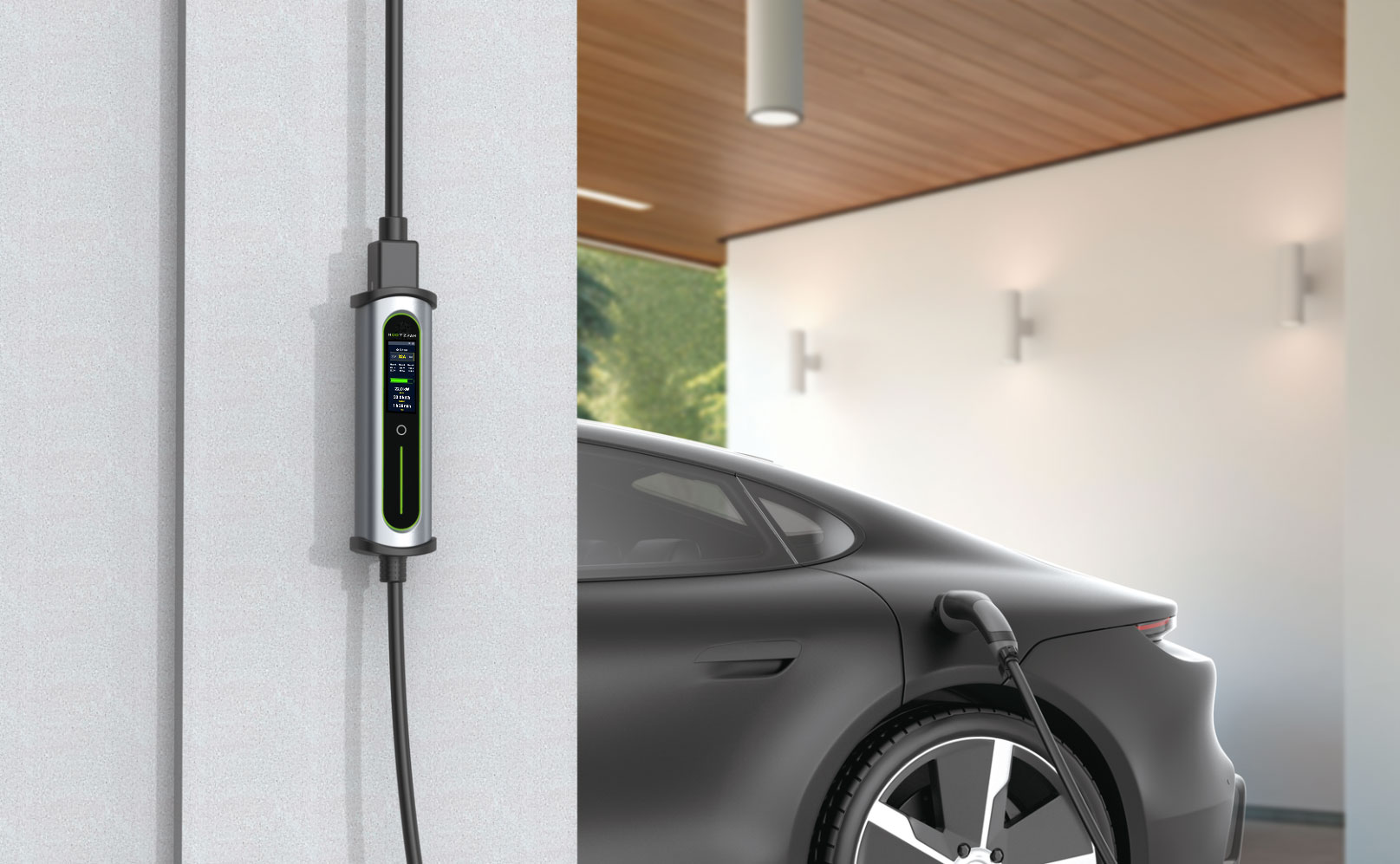

Home garage, Workplace parking, Road trips & camping, Hotels & resorts, Emergency backup charging etc. Wherever you are — it’s your mobile energy companion.

Product Sepcifications
Electrical Properties
Voltage
380V AC+10% ( P+N+PE)
Max Output Power
11.0kW
Max Output Current
16A
Frequency
50/60Hz
Consumption
<5W
Structure Design
Display
2.8“LCD
LED Indicator
LED Light bar
Charging Connector
GB/T; Type1;Type2; Tesla
Housing Material
Nylon, Rubber Aluminium Alloy
Total Cable Length
>=5m (Customizable)
Temperature Detection Function
Yes
Adjustable Currents
6-16A
Schedule Charging
Yes (1-12hours)
Rated Discharging Power
Up to 3.68kW
Rated Discharging Current
V2L
Rated Discharging Voltage
230V(1-phase, 50/60Hz)
Security Protection
Impact Protection
IK10
Ingress Protection
IP65
Voltage Resistance
2000V
Insulation Resistance
>1000MΩ (DC500V)
Mechanical Life
Plug In/Pull Out>10000 Times
Multiple Protection
Over/Undervoltage protection, Surge protection,Over temperature protection, Over current protection,Leakage Protection,Short circuit protection
Environmental Performance
Working Temperature
-30℃ ~+50℃
Storage Temperature
-40℃ ~+80°C
Working Humidity
5%~95%, No condensation
Altitude
<=2000m
Cooling Method
Natural Cooling
Packing Details
Product Size
280*80*66mm
N.W.
3.5Kg
Package
Carton/Handbag
Quality Guarantee
Warranty period
2 years
Electrical Properties
Voltage
380V AC+10% ( P+N+PE)
Max Output Power
22.0kW
Max Output Current
32A
Frequency
50/60Hz
Consumption
<5W
Structure Design
Display
2.8“LCD
LED Indicator
LED Light bar
Charging Connector
GB/T; Type1;Type2; Tesla
Housing Material
Nylon, Rubber Aluminium Alloy
Total Cable Length
>=5m (Customizable)
Temperature Detection Function
Yes
Adjustable Currents
6-32A
Schedule Charging
Yes (1-12hours)
Rated Discharging Power
Up to 3.68kW
Rated Discharging Current
V2L
Rated Discharging Voltage
230V(1-phase, 50/60Hz)
Security Protection
Impact Protection
IK10
Ingress Protection
IP65
Voltage Resistance
2000V
Insulation Resistance
>1000MΩ (DC500V)
Mechanical Life
Plug In/Pull Out>10000 Times
Multiple Protection
Over/Undervoltage protection, Surge protection,Over temperature protection,Over current protection,Leakage Protection,Short circuit protection
Environmental Performance
Working Temperature
-30℃ ~+50℃
Storage Temperature
-40℃ ~+80°C
Working Humidity
5%~95%, No condensation
Altitude
<=2000m
Cooling Method
Natural Cooling
Packing Details
Product Size
280*80*66mm
N.W.
3.5Kg
Package
Carton/Handbag
Quality Guarantee
Warranty period
2 years
